Application

Pump , Vacuum pump ,Fan ,Blower , Motor( gear and bearing lubrication)


Recommendation (Regular Routine Oil Analysis)
Sampling Quantity
Sampling Location/Point

Sampling Frequency
Oil Analysis Report

Turaround Service Time
Example of Oil Analysis Report

Recommendation (Regular Routine Oil Analysis)

Basic Package

PumpCheck804

Premium Package

PumpCheck 894


All Tests below are for PumpCheck™ 804

Wear Metal Elements -Condition

  • Fine Wear Metal - 18 elements, ASTM D6595 or ASTM D5185
  • RFS Coarse Wear Metal - 11 elements, ASTM D6595
  • Particle Quantifier Index (PQ Index), ASTM D8184

Oil Condition

  • Oil Condition ; oxidation, nitration, ASTM E2412M
  • Viscosity @ 40 °c or 100 °c, ASTM D445
  • Acid Number, ASTM D974

Contamination

  • Oil Contamination; dirt & dust, etc, ASTM D6595 or ASTM D5185
  • %Moisture & Water, ASTM D6304
  • Wrong oil contamination


  • Report with interpretation
All Tests below are for PumpCheck™ 894

Wear Metal Elements -Condition

  • Fine Wear Metal - 18 elements, ASTM D6595 or ASTM D5185
  • RFS Coarse Wear Metal - 11 elements, ASTM D6595
  • Particle Quantifier Index (PQ Index), ASTM D8184

Oil Condition

  • Oil Condition ; oxidation, nitration, ASTM E2412M
  • Viscosity @ 40 °c or 100 °c, ASTM D445
  • Acid Number, ASTM D974

Contamination

  • Report with interpretation

Highlight FocusLab's unique testing
in PumpCheck™ 804

Highlight FocusLab's unique testing
in PumpCheck™ 894


Product Data & Service Sheet of PumpCheck™804 and PumpCheck™894

* Wrong oil contamination can be detected in case BASELINE data will be available

Note: The above recommended test package will be guideline, the suitable test package may be vary depend upon right application, environment severity, critical factor, machine age, and so on.

Advance Package

PumpCheck824




All Tests below are for PumpCheck™ 824

Wear Metal Elements -Condition

  • RDE - AES Wear Metal - 18 elements, ASTM D6595
    or ICP - AES Wear Metal - 18 Elements, ASTM D5185
  • RFS Coarse Wear Metal - 11 elements, ASTM D6595
  • Particle Quantifier Index (PQ Index), ASTM D8184
  • Ferrographic Analysis, ASTM D7690

Oil Condition

  • Oil Condition; oxidation, nitration, ASTM E2412M
  • Viscosity @40°c or 100°c, ASTM D445
  • Acid Number, ASTM D974

Contamination

  • Report with interpretation

Highlight FocusLab's unique testing
in PumpCheck™ 824



Product Data & Service Sheet of PumpCheck™ 824

* Wrong oil contamination can be detected in case BASELINE data will be available

Note: The above recommended test package will be guideline, the suitable test package may be vary depend upon right application, environment severity, critical factor, machine age, and so on.

Application

Vacuum pump

Basic Package

PumpCheck834




All Tests below are for PumpCheck™ 834

Wear Metal Elements -Condition

  • Fine Wear Metal - 18 elements, ASTM D6596 or ASTM D5185
  • RFS Coarse Wear Metal - 11 elements, ASTM D6595
  • Particle Quantifier Index (PQ Index), ASTM D8184

Oil Condition

  • Oil Condition; oxidation, nitration, ASTM E2412M
  • Viscosity @40°c or 100°c, ASTM D445
  • Acid Number, ASTM D974

Contamination

  • Oil Contamination ; dirt & dust, ASTM D6595 or ASTM D5185
  • %Moisture & Water, ASTM D6304
  • Wrong oil contamination
  • Insoluble -Contamination , ASTM D4898M
    (Gravimetric Analysis)
  • Report with interpretation

Highlight FocusLab's unique testing
in PumpCheck™ 834



Product Data & Service Sheet of PumpCheck™ 834

* Wrong oil contamination can be detected in case BASELINE data will be available

Note: The above recommended test package will be guideline, the suitable test package may be vary depend upon right application, environment severity, critical factor, machine age, and so on.

Test Description

Oil Sample Quantity: 100 ml.

Oil Sampling Location/Point

  • Follow OEMs recommended sampling location / point
  • In the absence of OEMs guidelines , recommended below for general guidance for sampling point /location

Possible location/point will be

Pump

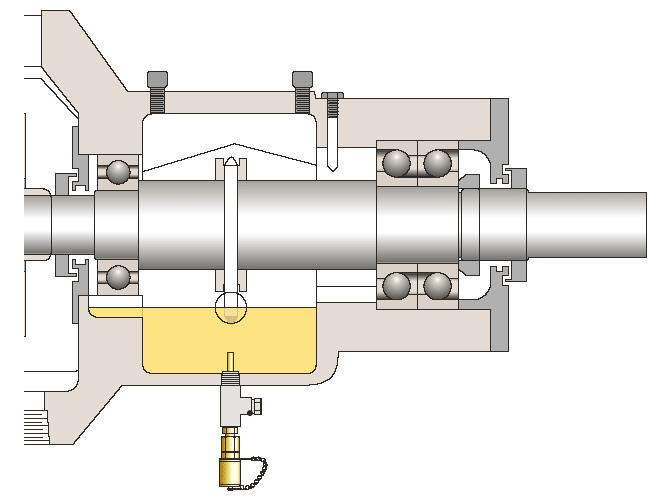

  • Through install sampling valve as below picture

Vacuum Pump

  • If rotary screw -vacuum pump ,prefered sampling at Filter Housing (upstream of filter)
    By installing valve or minimess valve

Sampling Tools & Devices

Sampling Techniques

Sampling Frequency

  • Initially , follow OEMs recommended sample interval for your equipment
  • In the absence of OEMs guidelines , recommended below for general guidance in establishing sample interval.

Recommended Sampling Frequency (Sampling Interval)

Industry - Application Normal Use Intermittent Use
Pump, Vacuum Pump,
Fan, Blower,
Motor (gear and bearing lubrication)
500-700 hours
or one month
and just prior to oil drain

Quarterly
and just prior to oil drain



Reports

LubeCheck™ Oil Analysis Report provide :-
  • Display an easy-to-read and understand.
  • Information for wear condition ,lubricant condition and contamination.
  • Interpretation and recommendation of the result . Option for Bilingual.
  • Color coded display of overall condition for present sample and history condition of previous sample.



  • Color coded problem highlights.
  • Provide new oil or reference oil for comparing result and as baseline.
  • Publish Alarm Limit range of the equipment and oil.
  • Comprehensive trending graph of most parameters.
  • LubeCheck™ Oil Analysis offers reporting options via internet, email and fax.


Turnaround Time Service

The report is typical available within 7-10 working days of sample receipt at FocusLab's labortory.

Examples of report

Remarks: Oil samples (after completion of testing) will be retained in our laboratory for approx 60 days ,just in case of in-depth testing and/or any future purpose.
