Application

Engines : Diesel and Gasoline



Recommendation (Regular Routine Oil Analysis)
Sampling Quantity
Sampling Location/Point

Sampling Frequency
Oil Analysis Report

Turaround Service Time
Example of Oil Analysis Report

Technical Articles and Case Study Related to this application



With today competitive economy, engine fleet (transpotation, mining, construction etc.) maintenance professionals require to make use of engines greater efficiency. LubeCheck™ engine oil analysis program have many proven experienced and record to help engine fleet for extended oil drain interval and extended engine overhaul period. With LubeCheck™ engine oil analysis program shall provide you greater profit in the long term.


Industries: transportation, mining, marine, construction, port etc.



Recommendation (Regular Routine Oil Analysis)

Basic Package

EngineCheck802

Premium Package

EngineCheck 804


All Tests below are for EngineCheck™ 802

Wear Metal Elements -Condition

  • Fine Wear Metal - 18 elements, ASTM D6595 or ASTM D5185
  • RFS Coarse Wear Metal - 11 elements, ASTM D6595
  • Particle Quantifier Index (PQ Index), ASTM D8184

Oil Condition

  • Oil Condition; oxidation, nitration
  • - Oxidation, ASTM D7414
  • - Nitration, ASTM D7624
  • Viscosity @ 40°c or @ 100°c, ASTM D445


Contamination

  • Oil Contamination; dirt & dust, soot, fuel, Coolant(glycol)
  • % Water bu FTIR, ASTM E2412M
  • Soot by FTIR, ASTM E2412M
  • Glycol by FTIR, ASTM E2412M
  • Wrong oil contamination
  • Report with Interpretation and Recommendation


All Tests below are for EngineCheck™ 804

Wear Metal Elements -Condition

  • Fine Wear Metal - 18 elements, ASTM D6595 or ASTM D5185
  • RFS Coarse Wear Metal - 11 elements, ASTM D6595
  • Particle Quantifier Index (PQ Index), ASTM D8184

Oil Condition

  • Oil Condition; oxidation, nitration
  • - Oxidation, ASTM D7414
  • - Nitration, ASTM D7624
  • Viscosity @ 40°c or @ 100°c, ASTM D445
  • TBN (Total Base Number), ASTM D4739 or ASTM D2896

Contamination

  • Oil Contamination; dirt & dust, soot, fuel, Coolant(glycol)
  • % Water bu FTIR, ASTM E2412M
  • Soot by FTIR, ASTM E2412M
  • Glycol by FTIR, ASTM E2412M
  • Wrong oil contamination
  • Report with Interpretation and Recommendation


Highlight FocusLab's unique testing
in EngineCheck™ 802

Highlight FocusLab's unique testing
in EngineCheck™ 804


Product Data & Service Sheet of EngineCheck™802 and EngineCheck™804

* Wrong oil contamination can be detected in case BASELINE data will be available

Note: The above recommended test package will be guideline, the suitable test package may be vary depend upon right application, environment severity, critical factor, machine age, and so on.

Test Description

Oil Sample Quantity: approx 100 cc for routine oil analysis of EngineCheck™ 802 and EngineCheck™ 804

Oil Sampling Location/Point

Ideally , the oil sample should be taken when the engine has reached its normal operating temperature and
during the engine still running. If this is not possible, then it should be done as soon as possible after the
engine has stopped (within 10 minutes).

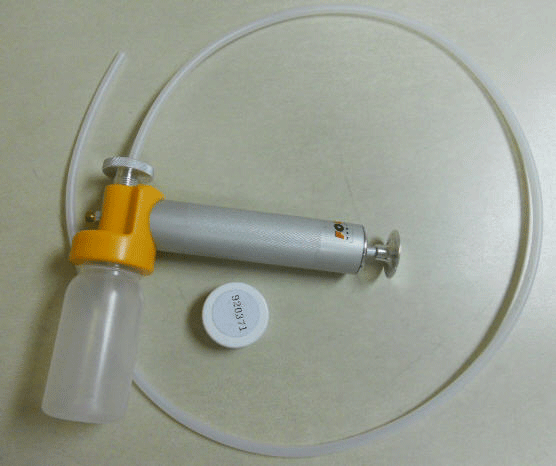

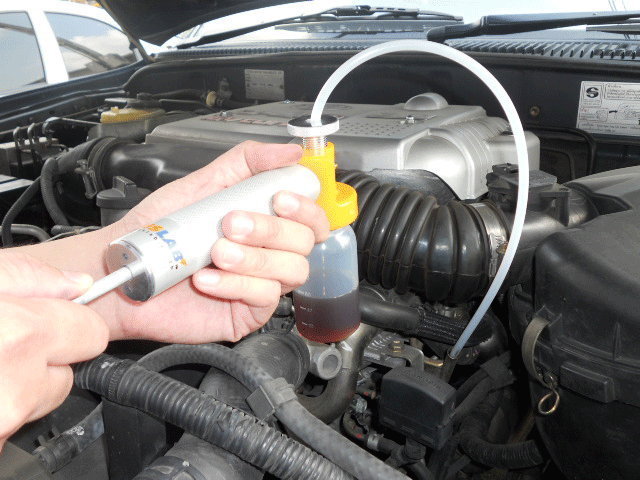

  • First Method - at the dipstick
By vacuum pump (fluid pump) and plastic tube through
dipstick tube into oil sump.
Take oil sample immediately
after engine stops .

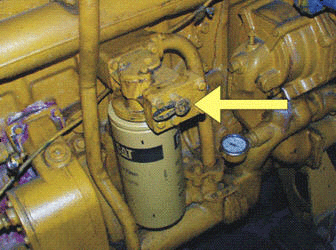

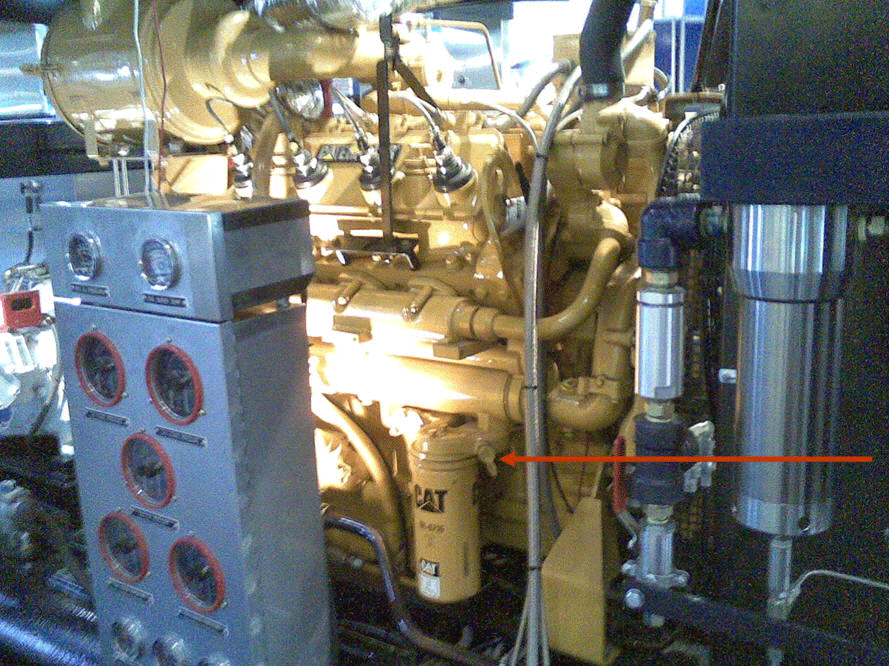

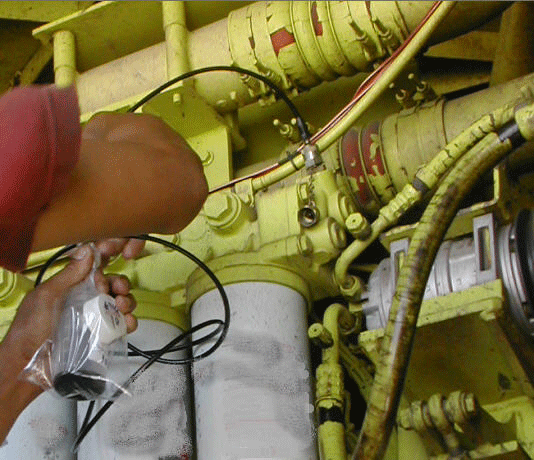

  • Second Method - install valve or tap fitted to oil feed pipes
By sampling valve locate after pump before filter (location at oil filter housing , after return)

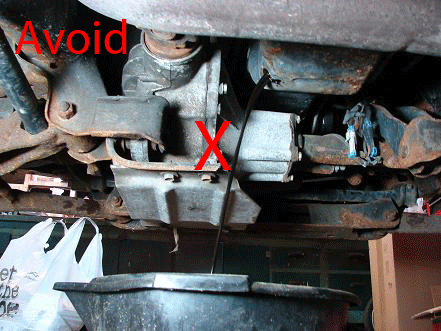

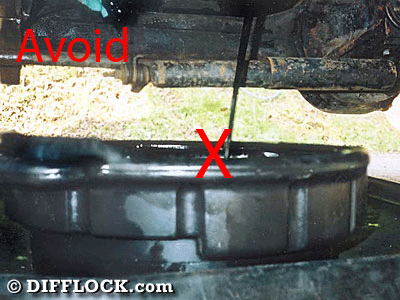

  • Avoid these methods
Avoid if possible: take sample from drain plug drain container and during cold condition


Sampling Tools & Devices

Sampling Techniques

Sampling Frequency

Recommended Sampling Frequency (Sampling Interval)

Industry - Application Hours Kilometers
Highway



15,000 kms
and just prior to oil drain

Off-Highway 250 hours
and just prior to oil drain

Marine
   Diesel Engine - Main Engine

500 hours
or one month
and just prior to oil drain



   Diesel Engine - Auxiliary Engine

500 hours
or one month
and just prior to oil drain



   Diesel Engine - Generator

500 hours
or one month
and just prior to oil drain



Industry - Application Normal Use Intermittent Use
Diesel Engine in Manufacturing and Processing Plan Monthly, 500 hours
and just prior to oil drain
Quarterly
and just prior to oil drain
Diesel Engine as Generator 250-500 hours
and just prior to oil drain
Quarterly
and just prior to oil drain



Reports

LubeCheck™ Oil Analysis Report provide :-
  • Display an easy-to-read and understand.
  • Information for wear condition ,lubricant condition and contamination.
  • Interpretation and recommendation of the result . Option for Bilingual.
  • Color coded display of overall condition for present sample and history condition of previous sample.



  • Color coded problem highlights.
  • Provide new oil or reference oil for comparing result and as baseline.
  • Publish Alarm Limit range of the equipment and oil.
  • Comprehensive trending graph of most parameters.
  • LubeCheck™ Oil Analysis offers reporting options via internet, email and fax.


Turnaround Time Service

The report is typical available within 7-10 working days of sample receipt at FocusLab's labortory.

Examples of report

Remarks: Oil samples (after completion of testing) will be retained in our laboratory for approx 60 days ,just in case of in-depth testing and/or any future purpose.



Technical articles and case study related to this application

  “Saving from improved lubricant quality and improved oil analysis average $32,765 per month at present”

  Practicing Oil Analysis Magazine. May-June 2005
By Winberg LubeTrak

  Preventing failures and extending oil-change interval save tremendously more than the cost of regular samples

  Construction Equipment Magazine , November 1,2005
By Larry Stewart ,Executive Editor
