Application

Gear System, Transmissions, Differential and Final drive






Recommendation (Regular Routine Oil Analysis)
Sampling Quantity
Sampling Location/Point

Sampling Frequency
Oil Analysis Report

Turaround Service Time
Example of Oil Analysis Report

Technical Articles and Case Study Related to this application



Too heavy load and torque? Excessive high speed? Improper oil type and viscosity? Etc. LubeCheck™-oil analysis can help you in detection and identifying early abnormal problem of gear oil system (abnormal wear and/or lubricant) as well as indicate any contamination before they result in catastrophic failure, costly downtime, loss production and expensive repair. LubeCheck™-oil analysis program shall help to manage your maintenance activity with greater efficiency and more investment return.



Recommendation (Regular Routine Oil Analysis)

Basic Package

GearCheck804

Premium Package

GearCheck 884

All Tests below are for GearCheck ™ 804

Wear Metal Elements -Condition

  • Fine Wear Metal - 18 elements, ASTM D6595 or ASTM D5185
  • RFS Coarse Wear Metal - 11 elements, ASTM D6595
  • Particle Quantifier Index (PQ Index), ASTM D8184

Oil Condition

  • Oil Condition; oxidation, nitration, nitration, ASTM E2412M
  • Viscosity @ 40°c or @ 100°c, ASTM D445
  • Acid Number, ASTM D974M

Contamination

  • Oil Contamination; dirt & dust, etc
  • % Moisture & Water, ASTM D6304
  • Wrong oil contamination

  • Report with Interpretation and Recommendation


All Tests below are for GearCheck ™ 884

Wear Metal Elements -Condition

  • Fine Wear Metal - 18 elements, ASTM D6595 or ASTM D5185
  • RFS Coarse Wear Metal - 11 elements, ASTM D6595
  • Particle Quantifier Index (PQ Index), ASTM D8184
  • Ferrography Analysis, ASTM D7690M

Oil Condition

  • Oil Condition; oxidation, nitration, nitration, ASTM E2412M
  • Viscosity @ 40°c or @ 100°c, ASTM D445
  • Acid Number, ASTM D974M

Contamination

  • Oil Contamination; dirt & dust, etc
  • % Moisture & Water, ASTM D6304
  • Wrong oil contamination

  • Report with Interpretation and Recommendation


Highlight FocusLab's unique testing
in GearCheck™ 804

Highlight FocusLab's unique testing
in GearCheck™ 884



Product Data & Service Sheet of GearCheck ™804 and GearCheck ™884

* Wrong oil contamination can be detected in case BASELINE data will be available

Note: The above recommended test package will be guideline, the suitable test package may be vary depend upon right application, environment severity, critical factor, machine age, and so on.



Gear System Application
  • High Precision and Reliability -Gear System
  • High Speed -Gear System
  • High Performance -Gear System
  • Power Turbine Gear Ssystem
  • Wind Turbine -Gear System
  • Gear Oil -lubricating Compartment /System
  • Transmission - lubricating Compartment/System

Advance Package

GearCheck 824

All Tests below are for GearCheck 824

Wear Metal Elements -Condition

  • Fine Wear Metal - 18 elements, ASTM D6595 or ASTM D5185
  • RFS Coarse Wear Metal - 11 elements, ASTM D6595
  • Particle Quantifier Index (PQ Index), ASTM D8184
  • Ferrography Analysis, ASTM D7690M

Oil Condition

  • Oil Condition; oxidation, nitration, nitration, ASTM E2412M
  • Viscosity @ 40°c or @ 100°c, ASTM D445
  • Acid Number, ASTM D974

Contamination



Highlight FocusLab's unique testing
in GearCheck™ 824

gear824 gear824_2

Product Data & Service Sheet of GearCheck ™824

* Wrong oil contamination can be detected in case BASELINE data will be available



Test Description

Oil Sample Quantity: 100 ml.

Oil Sampling Location/Point

  • Follow OEMs recommended sampling location / point
  • In the absence of OEMs guidelines , recommended below for general guidance for sampling point /location

General and Possible location/point in the beginning period ,will be

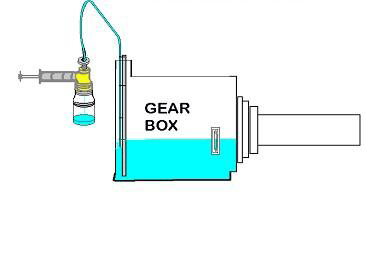

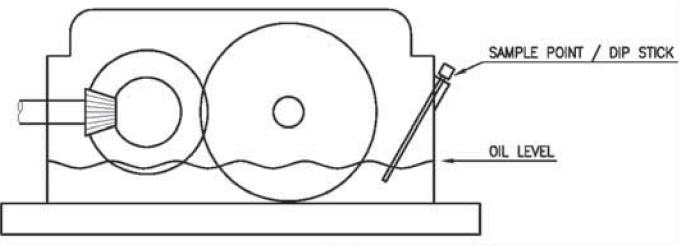

  • For gearbox which have oil level dipstick /plug . Through oil level plug. At dipstick of into the oil reservoir - using fluid vacuum pump and plastic tube
  • Drain plug/Line with tube extender
    At drain line /tube /valve , modification by install pivot or Tubing sampling valve


Before modification




After modification

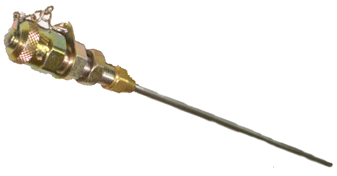

Tubing sampling valve

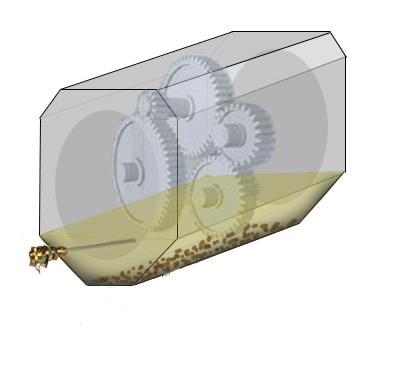

Avoid to take sample from drain line.

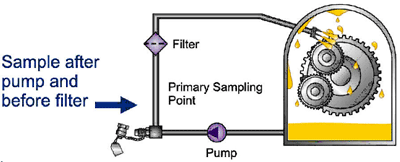

  • Dedicated sampling valve installed in case wet sump circulating system , pressure feed line if pump feed




  • Other gear systems, consult FocusLab technical experts.

Sampling Tools & Devices

Sampling Techniques

Sampling Frequency

  • Initially , follow OEMs recommended sample interval for your equipment
  • In the absence of OEMs guidelines , recommended below for general guidance in establishing sample interval.

Recommended Sampling Frequency (Sampling Interval)

Industry - Application Hours Kilometers
Highway
(Gear, differential, transmissions)



20,000 kms
and just prior to oil drain

Off-Highway
(Gear, differential, transmissions)
500 hours
and just prior to oil drain

Marine
   Gear - Main Propulsion System
   Reduction gear

500 hours
or one month
and just prior to oil drain



   Gear - Supporting System
   Deck Gear Drive

2,000 hours
or quarterly
and just prior to oil drain



Industry - Application Normal Use Intermittent Use
Industry
   Gear - low speed

Bi-monthly, 1,000 hours
and just prior to oil drain

Quarterly
and just prior to oil drain
   Gear - high speed Monthly, 300-500 hours
and just prior to oil drain
Quarterly
and just prior to oil drain

Reports

LubeCheck™ Oil Analysis Report provide :-
  • Display an easy-to-read and understand.
  • Information for wear condition ,lubricant condition and contamination.
  • Interpretation and recommendation of the result . Option for Bilingual.
  • Color coded display of overall condition for present sample and history condition of previous sample.



  • Color coded problem highlights.
  • Provide new oil or reference oil for comparing result and as baseline.
  • Publish Alarm Limit range of the equipment and oil.
  • Comprehensive trending graph of most parameters.
  • LubeCheck™ Oil Analysis offers reporting options via internet, email and fax.


Turnaround Time Service

The report is typical available within 7-10 working days of sample receipt at FocusLab's labortory.

Examples of report

Remarks: Oil samples (after completion of testing) will be retained in our laboratory for approx 60 days ,just in case of in-depth testing and/or any future purpose.



Technical articles and case study related to this application


  Ken Nicholas, Schroeder Industries; Richard Winslow, Pacificorp - Naughton Plant
Ted Naman, ConocoPhillips
Practicing Oil Analysis Magazine . November 2006
