Application

Hydraulics System




Recommendation (Regular Routine Oil Analysis)
Sampling Quantity
Sampling Location/Point

Sampling Frequency
Oil Analysis Report

Turaround Service Time
Example of Oil Analysis Report

Technical Articles and Case Study Related to this application

Modern hydraulic system are making in increasing use of sensitive control valves. Failure of control valve will cause very expensive loss of production many times more than the cost of prevention. LubeCheck™-hydraulic oil analysis is an easy way that can be utilize as preventive and predictive program. Information gained from LubeCheck™ can help identify early potential problems, avoid equipment breakdown and loss of production.

Recommendation (Regular Routine Oil Analysis)

Basic Package

HydraulicCheck892

Premium Package

HydraulicCheck 894


All Tests below are for HydraulicCheck ™ 892

Wear Metal Elements -Condition

  • Fine Wear Metal - 18 elements, ASTM D6595 or ASTM D5185
  • RFS Coarse Wear Metal - 11 elements, ASTM D6595
  • Particle Quantifier Index (PQ Index), ASTM D8184

Oil Condition

  • Oil Condition ; oxidation, nitration, ASTM E2412M
  • Viscosity @ 40 °c or 100 °c, ASTM D445

Contamination

  • Report with interpretation


All Tests below are for HydraulicCheck ™ 894

Wear Metal Elements -Condition

  • Fine Wear Metal - 18 elements, ASTM D6595 or ASTM D5185
  • RFS Coarse Wear Metal - 11 elements, ASTM D6595
  • Particle Quantifier Index (PQ Index), ASTM D8184

Oil Condition

  • Oil Condition ; oxidation, nitration, ASTM E2412M
  • Viscosity @ 40 °c or 100 °c, ASTM D445
  • Acid Number, ASTM D974

Contamination

  • Report with interpretation


Highlight FocusLab's unique testing
in HydraulicCheck™ 892

Highlight FocusLab's unique testing
in HydraulicCheck™ 894


Product Data & Service Sheet of HydraulicCheck™ 892 and HydraulicCheck™ 894



Hydraulic Application
  • High Precision -Hydraulic System
  • High Pressure -Hydraulic System (> 1000 psi)
  • High Performance -Hydraulic System
  • Electro Hydraulic Control System (EHC system)
  • EHC Fluid  system for Steam Turbine

Advanced Package

HydraulicCheck 813

All Tests below are for HydraulicCheck ™ 813

Wear Metal Elements -Condition

  • RDE - AES Wear Metal 18 elements, ASTM D6595
    or ICP - AES Wear Metal 18 element, ASTM D5185
  • RFS Coarse Wear Metal - 11 elements, ASTM D6595
  • Particle Quantifier Index (PQ Index), ASTM D8184

Oil Condition

  • Oil Condition ; oxidation, nitration, ASTM E2412M
  • Viscosity @ 40°c, ASTM D445
  • TAN (Total Acid Number), ASTM D974

Contamination

  • Report with interpretation

Highlight FocusLab's unique testing
in HydraulicCheck™ 813

HF-C Type -Fire Resistant Fluid -Hydraulic

Basic Package

FC HydraulicCheck 894



All Tests below are for FC HydraulicCheck ™ 894

Wear Metal Elements -Condition

  • Fine Wear Metal -18 elements, ASTM D6595 or ASTM D5185
  • RFS Coarse Wear Metal -11 elements, ASTM D6595
  • Particle Quantifier Index (PQ Index), ASTM D8184

Oil Condition

  • Viscosity @40°c, ASTM D445
  • % Glycol, Refractometer Method
  • pH, ASTM D1287
  • Reserve Alkalinity (RA), ASTM D1121

Contamination

  • Report with interpretation

Highlight FocusLab's unique testing
in FC HydraulicCheck™894

* Wrong oil contamination can be detected in case BASELINE data will be available



Note: The above recommended test package will be guideline, the suitable test package may be vary depend upon right application, environment severity, critical factor, machine age, and so on.

Test Description

Oil Sample Quantity: 100 ml.

Oil Sampling Location/Point

  • Follow OEMs recommended sampling location / point
  • In the absence of OEMs guidelines , recommended below for general guidance for sampling point /location

Possible location/point in the beginning period ,will be

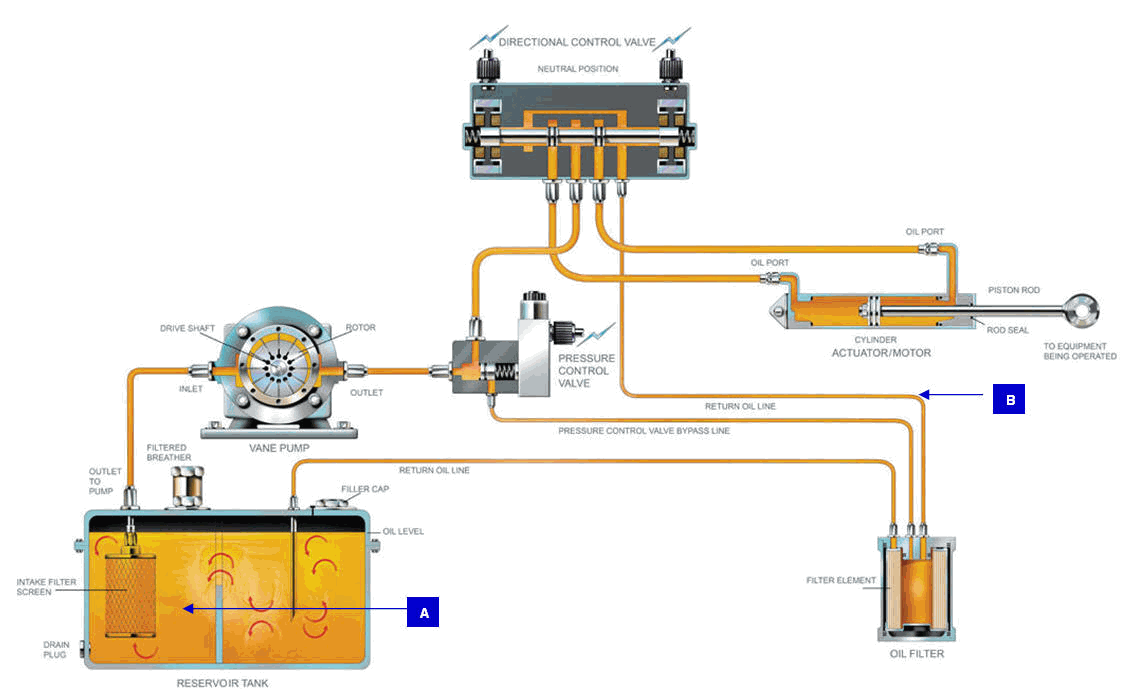

  • Sampling at oil reservoir /tank - point A as below picture
    by drop tube -vacuum pump

    and/or
  • Sampling at pressure and return line (upstream of filter) - point B as below picture
    By installing valve or minimess valve


Sampling Tools & Devices

Sampling Techniques

Sampling Frequency

  • Initially , follow OEMs recommended sample interval for your equipment
  • In the absence of OEMs guidelines , recommended below for general guidance in establishing sample interval.

Recommended Sampling Frequency (Sampling Interval)

Industry - Application Hours Kilometers
Off-highways - Hydraulics 500 hours
and just prior to oil drain



Marine
   Hydraulics - Main Propulsion
   Steering Gear Hydraulics

500 hours
or one month
and just prior to oil drain



   Hydraulics - Supporing System
   Deck Hydraulics

2,000 hours
or quarterly
and just prior to oil drain



Industry - Application Normal Use Intermittent Use
Industry - Hydraulics
   Gear - low speed
Monthly, 700 hours
and just prior to oil drain
Quarterly
and just prior to oil drain



Reports

LubeCheck™ Oil Analysis Report provide :-
  • Display an easy-to-read and understand.
  • Information for wear condition ,lubricant condition and contamination.
  • Interpretation and recommendation of the result . Option for Bilingual.
  • Color coded display of overall condition for present sample and history condition of previous sample.



  • Color coded problem highlights.
  • Provide new oil or reference oil for comparing result and as baseline.
  • Publish Alarm Limit range of the equipment and oil.
  • Comprehensive trending graph of most parameters.
  • LubeCheck™ Oil Analysis offers reporting options via internet, email and fax.


Turnaround Time Service

The report is typical available within 7-10 working days of sample receipt at FocusLab's labortory.

Examples of report

Remarks: Oil samples (after completion of testing) will be retained in our laboratory for approx 60 days ,just in case of in-depth testing and/or any future purpose.



Technical articles and case study related to this application
